Single Mode FIber
GYFTY48
Phoslinc All-Dielectric Outdoor Optical Cable
Stranded loose tube, jelly-filled construction with FRP strength members. Safe for high-voltage environments.
Overview
What this cable is built for.

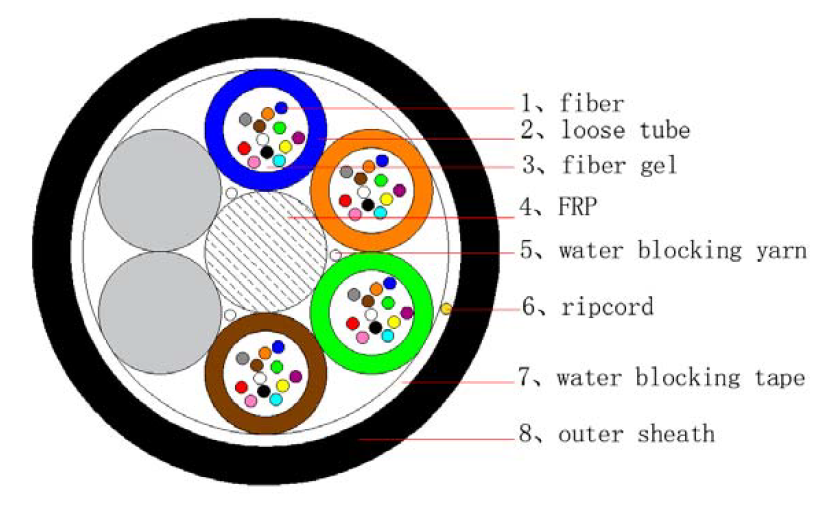

Featuring a 48 fiber count, this cable utilizes a multi-loose tube design that provides superior protection against environmental stressors without the use of metallic elements. At the heart of the cable is a Fiber Reinforced Plastic (FRP) central strength member, which provides excellent tensile strength while remaining immune to electromagnetic interference. The 48 fibers are organized into four PBT loose tubes, each containing 12 fibers and a moisture-resistant jelly compound to prevent micro-bending and attenuation. Two natural-colored fillers are stranded alongside the tubes to maintain a perfectly circular cable profile.
Engineered for longevity in harsh environments, the GYFTY48 incorporates dual-layer moisture protection using water-blocking yarns and tape. This dry water-blocking technology ensures the cable core remains protected from water ingress. The entire assembly is encased in a rugged, black High-Density Polyethylene (HDPE) outer sheath, offering exceptional resistance to UV radiation and mechanical wear.
Key features
- FRP Central Strength Member
- Dual Moisture Protection
- 48 Fiber count
- HDPE Sheath
- Multi Loose Tube
Applications
- Outdoor
- All Dielectric
- Water Resistant
Specifications
Technical specifications.
| Fiber count | 48F |
| Fiber type | ITU-T G.652D single-mode |
| Construction | Stranded loose tube, jelly-filled, FRP central strength member |
| Sheath | HDPE black, UV-resistant |
| Outer diameter | 12.5 mm ± 0.3 |
| Weight (typical) | 145 kg / km |
| Tensile strength | Short-term 2000 N / Long-term 1000 N |
| Crush resistance | Short-term 3000 N / 100 mm |
| Bend radius (min) | 10× OD installation / 20× OD operation |
| Operating temperature | -40 °C to +70 °C |
| Storage temperature | -50 °C to +70 °C |
| Standards | ITU-T G.652D, IEC 60794 |
| Standard length | 3km/Drum |
